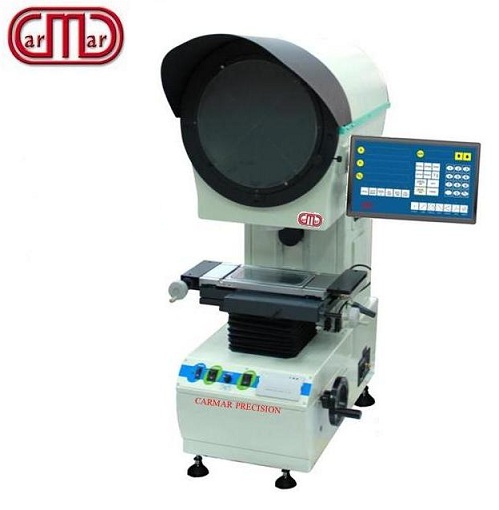

Vertical Standard Type Digital Optical Comparator
PV-3015 series (Reverse image)
PV-3015E series (Erect image)
PV series profile projectors are reliable and affordable measuring system of high precision and efficiency. An excellent solution to the most critical requirments of high quality Optical Profile Measuring Suitable for measuring different shapes. Complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats ect. Most effective device to measure most 2 Dimensional parameters like linear dimensions and angles.
The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology.
2. Magnification accuracy : 0.08% contour, 0.12% surface.
3. Equipped with DC-3000 data processing system and foot-switch for measuring.
4. Erect image measuring for different requirements.
|Stage size (mm)||340 x 152|
|Glass table size (mm)||196 x 96|
|X-axis travel (mm)||150|
|Y-axis travel (mm)||50|
|Z-axis travel (mm)||90 (for focusing)|
|Measuring accuracy (μm)||3.0 + L/75|
L: measuring length (mm)
|Resolution (X/Y-axis)||0.001 mm (1μm) or 0.0005 mm (0.5μm)|
|Projector Screen||Size (mm)||12” (Ø312)，usable range > Ø300|
|Rotation range||0 ~ 360º|
|Angle resolution||1’ or 0.01º|
|Object view (mm)||Ø30||Ø15||Ø6||Ø3|
|Working Dist. (mm)||77.7||44.3||38.4||25.3|
|Max. work-piece height (mm)||90||90||90||90|
|Data processing system||DC-3000 multi-function data processing system :|
Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero
setting, ½ calculation, 0° 90° 270° 360° conversion, linear compensation,
RS-232 data output
|Illumination||Transmission and reflection light source : 24V/150W-halogen lamp|
|Power||110V/220V(AC)，50/60Hz，400W total power|
|Light source cooling||Forced air cooling|
|Instruments dimension (mm)||770 x 550 x 1100|
|Option||Rotary table, swivel center support, edge detector and so on, please refer to accessories of optical comparator for more detail.|
